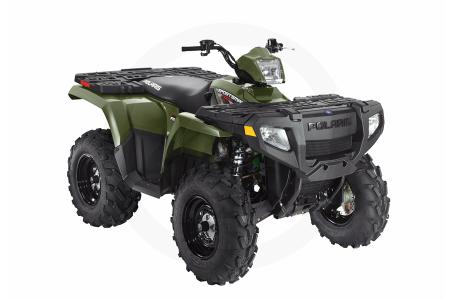

2009 Polaris Industries Sportsman® 500 H.O.

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Sage Green

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

Best Selling Automatic 4x4 ATVs. The Sportsman® that started it all. With a carbureted 500 HO engine, On-Demand True AWD, IRS and more. The legendary Sportsman ride and handling at a great price.

500 cc Carbureted Engine
Electric Start
Hydraulic Front Disc Brakes
Independent Rear Suspension (IRS): The heart of what makes a Sportsman a Sportsman. The rock-solid, proven design minimizes body roll and keeps the ride smooth.
Automatic Transmisssion with H/L/N/R
Front Storage: The largest front storage of any ATV. Large capacity lets you carry loads of gear and still have access to it even with items tied down to the deck.

Engine

Engine Type: 4-Stroke
Displacement: 498 cc
Carburetation: 40mm CV Mikuni
Cooling Type: Liquid
Starting Type: Electric

Drivetrain

Final Drive: Shaft
Transmission: P/R/N/L/H
Drive System: Automatic PVT, 2WD/AWD
Engine Braking System: Accessory

Suspension

Front Suspension: MacPherson Strut with 8.2 in. / 20.8 cm travel
Rear Suspension: Fully Independent, progressive rate with anti-roll bar; Fully Independent, progressive rate with anti-roll bar; 9.5 in. / 24.1 cm travel

Brakes

Front Brake: Single Lever hydraulic disc
Rear Brake: Hydraulic rear foot brake

Tires/Wheels

Front Tires: 25 x 8-12; 489
Rear Tires: 25 x 11-12; 489
Wheels: Stamped Steel

Dimensions

Wheelbase: 50.5 in. / 128.3 cm
Dry Weight: 696 lbs. / 316 kg
Length: 83 in. / 210.8 cm
Width: 48 in. / 121.9 cm
Height: 48 in. / 121.9 cm
Seat Height: 33.75 in. / 85.7 cm

Capacities

Fuel Capacity: 4.1 gal. / 15.5 l
Front Rack/Box Capacity: 90 lbs. / 40.8 kg
Rear Rack Capacity: 180 lbs. / 81.6 kg
Hitch/Type: Std / Receiver
Hitch Towing Capacity: 1225 lbs. / 555.7 kg

Instrumentation

Digital Gauge
Speedometer
Odometer
Tachometer
Tripmeter
Hourmeter
Clock
Gear Indicator
Fuel Gauge
Hi Temp/Low Batt lights
DC Outlet

Colors

Sage Green, Indy Red

Specifications

Engine
Engine Type	4-Stroke
Displacement	499 cc
Engine Cooling	Liquid
Fuel System	40 mm CV Mikuni
Starting System	Electric
Chassis
Front Suspension	MacPherson Strut
Front Travel	8.2 in. (20.8 cm)
Front Brake Type	Single Lever hydraulic disc
Front Tires	25 x 8-12; 489
Rear Suspension	Fully Independent, progressive rate with anti-roll bar
Rear Travel	9.5 in. (24.1 cm)
Rear Brake Type	Hydraulic rear foot brake
Rear Tires	25 x 11-12; 489
Dimensions/Capacities
Dry Weight	696 lbs. (316 kg)
Front Rack Capacity	90 lbs. (40.8 kg)
Rear Rack Capacity	180 lbs. (81.6 kg)
Towing Capacity	1225 lbs. (555.7 kg)
Fuel Capacity	4.1 gal. (15.5 l)
Ground Clearance	11.25 in. (28.6 cm)
Machine Dimensions (LxWxH)	83 x 48 x 48 in. (210.8 x 121.9 x 121.9 cm)
Wheelbase	50.5 in. (128.3 cm)
Drive Train
Drive Train	Automatic PVT, 2WD/AWD
Final Drive	Shaft
Transmission	P/R/N/L/H
General
Speedometer	Standard
Tachometer	Standard
Odometer	Standard
Colors	Sage Green, Indy Red

Compare Models

Chassis

Year	2009
Manufacturer	Polaris Industries
Model	Sportsman® 500 H.O.
Style	Sport
MSRP*	$5,999.00
Front Suspension	MacPherson Strut
Front Travel	8.2 in. (20.8 cm)
Front Brake Type	Single Lever hydraulic disc
Front Tires	25 x 8-12; 489
Rear Suspension	Fully Independent, progressive rate with anti-roll bar
Rear Travel	9.5 in. (24.1 cm)
Rear Brake Type	Hydraulic rear foot brake
Rear Tires	25 x 11-12; 489
Frame
Dimensions/Capacities
Dry Weight	696 lbs. (316 kg)
Front Rack Capacity	90 lbs. (40.8 kg)
Rear Rack Capacity	180 lbs. (81.6 kg)
Towing Capacity	1225 lbs. (555.7 kg)
Fuel Capacity	4.1 gal. (15.5 l)
Ground Clearance	11.25 in. (28.6 cm)
Machine Dimensions (LxWxH)	83 x 48 x 48 in. (210.8 x 121.9 x 121.9 cm)
Wheelbase	50.5 in. (128.3 cm)
Drive Train
Drive Train	Automatic PVT, 2WD/AWD
Final Drive	Shaft
Transmission	P/R/N/L/H
Engine
Engine Type	4-Stroke
Displacement	499 cc
Bore x Stroke
Cylinders
Engine Cooling	Liquid
Fuel System	40 mm CV Mikuni
Starting System	Electric
Alternator
General
Speedometer	Standard
Tachometer	Standard
Odometer	Standard
Lighting
Colors	Sage Green, Indy Red
Warranty

Current Promotions

There are currently no promotions available for this product.
