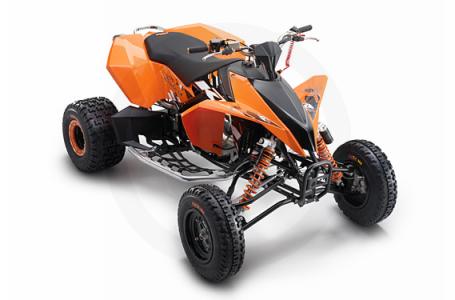

2009 KTM 450 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Your season ticket to the podium.


For everyone for whom only winning counts in racing, the 450 SX is the perfect choice – because in this ATV, everything is just right! Only the best components are good enough for this champion. The KTM engine, proven in countless championships, catapults you into the lead from the start with maximum acceleration. Lap by lap, you show the opposition their limits. Optimum handling, full power and your ability is the combination which makes series winners.

    Engine
    • Engine type: Single cylinder, 4-stroke, SOHC, 4-Valve, liquid cooled
    • Displacement: 449 cc
    • Bore x stroke: 97 x 60,8 mm
    • Compression ratio: 12.5:1
    • Starter: Electric starter / 4 Ah
    • Transmission: 5-speed
    • Carburetor: Keihin FCR-MX 41
    • Lubrication: Dry sump, pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 31:78
    • Final drive: 14:38
    • Cooling: Liquid cooling
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital
    Chassis
    • Frame: Chromoly
    • Subframe: Aluminum 7020
    • Handlebar: Magura tapered aluminum, Ø 28 mm
    • Front suspension: WP fully adjustable, twin A-arms
    • Rear suspension: WP PDS mono-shock, fully adjustable, swingarm
    • Suspension travel front/rear: 244/258 mm (9.61/10.16")
    • Front brake: 180 mm (7.08") floating WAVE discs, 4-piston fixed caliper x 2
    • Rear brake: 200 mm (7.87") disc, single piston floating caliper
    • Rims, front/rear: 5.0" x 10.0"; 8.0" x 9.0" Douglas
    • Tires, front/rear: 20" x 6"-10"; 18" x 10"-8" MAXXIS Razor MX Soft
    • Chain: 520 X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminum SX Racing w / Spark Arrestor
    • Wheel base: 1280 mm (50.39")
    • Ground clearance (unloaded): 265 mm (10.43")
    • Seat height: 795 mm (31.3")
    • Tank capacity: approx. 10.3 liters (2.72 gal)
    • Weight (no fuel): approx. 165 kg (363.8 lbs)

    Specifications

    Engine
    Engine Type 4-stroke, SOHC, 4-Valve
    Displacement 449 cc
    Bore x Stroke 97 x 60.8 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Keihin FCR-MX 41
    Starting System Electric starter / 4 Ah
    Chassis
    Front Suspension WP fully adjustable, twin A-arms
    Front Travel 9.61 in. (244 mm)
    Front Brake Type 7.08 in. (180 mm) floating WAVE discs, 4-piston fixed caliper x 2
    Front Tires 20 x 6-10 in. MAXXIS Razor MX Soft
    Rear Suspension WP PDS mono-shock, fully adjustable, swingarm
    Rear Travel 10.16 in. (258 mm)
    Rear Brake Type 7.87 in. (200 mm) disc, single piston floating caliper
    Rear Tires 18 x 10-8 in. MAXXIS Razor MX Soft
    Frame Chromoly; Subframe: Aluminum 7020
    Dimensions/Capacities
    Dry Weight Weight (no fuel/approx): 363.8 lbs (165 kg)
    Fuel Capacity 2.72 gal (10.3 l)
    Ground Clearance Unloaded: 10.43 in. (265 mm)
    Wheelbase 50.39 in. (1280 mm)
    Drive Train
    Final Drive 14:38
    Transmission 5-speed

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 450 SX
    Style Sport
    Chassis
    Front Suspension WP fully adjustable, twin A-arms
    Front Travel 9.61 in. (244 mm)
    Front Brake Type 7.08 in. (180 mm) floating WAVE discs, 4-piston fixed caliper x 2
    Front Tires 20 x 6-10 in. MAXXIS Razor MX Soft
    Rear Suspension WP PDS mono-shock, fully adjustable, swingarm
    Rear Travel 10.16 in. (258 mm)
    Rear Brake Type 7.87 in. (200 mm) disc, single piston floating caliper
    Rear Tires 18 x 10-8 in. MAXXIS Razor MX Soft
    Frame Chromoly; Subframe: Aluminum 7020
    Dimensions/Capacities
    Dry Weight Weight (no fuel/approx): 363.8 lbs (165 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.72 gal (10.3 l)
    Ground Clearance Unloaded: 10.43 in. (265 mm)
    Machine Dimensions (LxWxH)
    Wheelbase 50.39 in. (1280 mm)
    Drive Train
    Drive Train
    Final Drive 14:38
    Transmission 5-speed
    Engine
    Engine Type 4-stroke, SOHC, 4-Valve
    Displacement 449 cc
    Bore x Stroke 97 x 60.8 mm
    Cylinders Single
    Engine Cooling Liquid
    Fuel System Keihin FCR-MX 41
    Starting System Electric starter / 4 Ah
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors
    Warranty

    Current Promotions

    There are currently no promotions available for this product.
