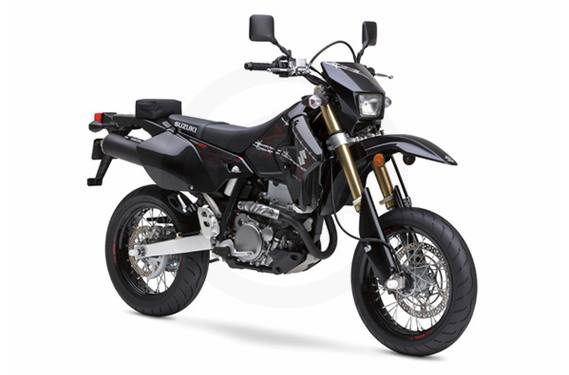

2009 Suzuki DR-Z400SM

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Black

Click on a thumbnail to view larger image.

View All Thumbnails Hide Thumbnails

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

How's this for a red-hot combination? Take the incredible versatility and performance of Suzuki's renowned DR-Z400. Mix in street-legal capabilities and unmatched handling. Then add a double shot of aggressive Suzuki styling and attitude. The result is the 2009 DR-Z400SM.

For exceptional performance on the street, the DR-Z400SM offers remarkably smooth performance, along with a rush of torque across the powerband. For crisp handling, it features a lightweight, compact design, complemented by advanced suspension front and rear, including a Motocross-derived inverted fork.

All this performance at a value that earned the DR-Z400SM "Best Bang for the Buck" runner up in Motorcyclist Magazine's 2007 "Motorcycle of the Year" awards.

Key Features

Suzuki's Supermotard model based on DR-Z400S - combines Supermotard style and features in a narrow, lightweight street-legal package

Engine Features

Lightweight 398cc, DOHC, liquid-cooled, dry-sump engine produces strong, tractable low-rpm power
Compact 4-valve cylinder head with 36mm intake valves, 29mm exhaust valves, narrow 28-degree included valve angle and shim-under-bucket valve adjustment system
SCEM-plated cylinder (nickel-silicon-phosphorous) is lighter and more durable than an iron liner with excellent heat transfer properties
Forged aluminum piston is 10 percent lighter than a cast piston and receives additional oil-cooling to the piston crown through a crankcase oil jet
Compact 5-speed transmission utilizes a cable-operated clutch with separate outer cover for simplified clutch maintenance
Additional weight savings with magnesium valve cover, clutch cover, and magneto cover
Smooth throttle response with a Mikuni™ BSR36 CV-type carburetor fed by 6-liter airbox. The left side cover has quick-release fasteners for easy access to the air filter
Electric start with lightweight starter motor and a compact 6.5 amp maintenance-free battery
Automatic decompression system for quick/easy engine starts
Thermostatically controlled cooling fan mounted to the left radiator helps maintain consistent operating temperature in traffic

Chassis Features

Renthal tapered aluminum handlebar for reduced vibration and an aggressive look
Compact digital instrument cluster with speedometer, odometer, twin-trip meters with addition/subtraction capability, clock, timer and stopwatch functions
Long travel, Showa-brand inverted front fork derived from RM250 - features adjustable compression/rebound damping and alumite coating on inner tube surfaces for smooth action
A fully adjustable rear shock absorber with high/low speed compression damping adjuster and aluminum swingarm for precise rear wheel control
Strong braking performance supplied by a front disc brake with a large 300mm floating-type rotor and dual-piston caliper, plus 240mm rear disc brake with single-piston caliper
Black-painted RK Excel 17" aluminum rims and radial tires: 120/70-R17 front, 140/70- R17 rear
New front and rear axle sliders
On-road legal lighting with bright 60/55 watt halogen headlight, compact tail/stoplight, lightweight, rubber-mounted turn signals and horn
Narrow profile with smooth transitions between the tank, seat and bodywork
Chrome-moly steel frame tuned for Supermoto style riding is torsionally strong with minimal weight. The backbone tube, front down tube, and steering head gussets form the dry-sump engine oil tank
A bolt-on aluminum subframe helps reduce weight and simplify maintenance
Chrome-moly steel footpegs, aluminum rims/hubs, plus engine guard and rear disc guard

Specifications

Engine: 4-stroke, liquid-cooled, DOHC
Bore Stroke: 90.0 mm (3.543 in) x 62.6 mm (2.465 in)
Compression Ratio: 11.3 : 1
Fuel System: MIKUNI BSR36, single
Lubrication: Dry sump
Ignition: Electronic ignition (CDI)
Transmission: 5-speed constant mesh
Final Drive: RK520KZO, 110 links
Overall Length: 2225 mm (87.6 in)
Overall Width: 855 mm (33.7 in)
Overall Height: 1200 mm (47.2 in)
Seat Height: 890 mm (35.0 in)
Ground Clearance: 260 mm (10.2 in)
Wheelbase: 1460 mm (57.5 in)
Curb Weight: 146 kg (321 lbs)
Suspension Front: Inverted telescopic, coil spring, oil damped
Suspension Rear: Link type, coil spring, oil damped
Brakes Front: Disc brake
Brakes Rear: Disc brake
Tires Front: 120/70R17M/C 58H, tube type
Tires Rear: 140/70R17M/C 66H, tube type
Fuel Tank Capacity: 10.0 L (2.6/2.2 US/Imp gal) - Including Reserve (CA: 9.5 L (2.5/2.1 US/Imp gal) -Including Reserve)
Color: Black, White

Specifications

Engine
Engine Type	4-Stroke
Displacement	398 cc
Bore and Stroke	90.0 x 62.6 mm (2.465 x 3.543 in.)
Cooling	Liquid-Cooled
Compression Ratio	11.3 : 1
Fuel System	MIKUNI BSR36, single
Ignition	Electronic ignition (CDI)
Chassis
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Disc brake
Front Tire	120/70R17M/C 58H, tube type
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Disc brake
Rear Tire	140/70R17M/C 66H, tube type
Dimensions
Dry Weight	146 kg (321 lbs.)
Fuel Capacity	2.6 gal (10 l)
Wheelbase	1460 mm (57.5 in.)
Seat Height	890 mm (35.0 in.)
Transmission
Transmission	5-speed constant mesh
Final Drive	RK520KZO, 110 links
General
Speedometer	Standard
Odometer	Standard
Colors	Black and White
Warranty	12 month unlimited mileage limited warranty

Compare Models

Chassis

Year	2009
Manufacturer	Suzuki
Model	DR-Z400SM
Style	Super Sport
MSRP*	$6,699.00
Front Suspension	Inverted telescopic, coil spring, oil damped
Front Brakes	Disc brake
Front Tire	120/70R17M/C 58H, tube type
Rear Suspension	Link type, coil spring, oil damped
Rear Brakes	Disc brake
Rear Tire	140/70R17M/C 66H, tube type
Dimensions
Dry Weight	146 kg (321 lbs.)
Fuel Capacity	2.6 gal (10 l)
Wheelbase	1460 mm (57.5 in.)
MPG
Seat Height	890 mm (35.0 in.)
Trail
Rake
Engine
Engine Type	4-Stroke
Displacement	398 cc
Bore and Stroke	90.0 x 62.6 mm (2.465 x 3.543 in.)
Cooling	Liquid-Cooled
Compression Ratio	11.3 : 1
Fuel System	MIKUNI BSR36, single
Ignition	Electronic ignition (CDI)
General
Speedometer	Standard
Tachometer
Odometer	Standard
Colors	Black and White
Warranty	12 month unlimited mileage limited warranty
Transmission
Transmission	5-speed constant mesh
Final Drive	RK520KZO, 110 links
